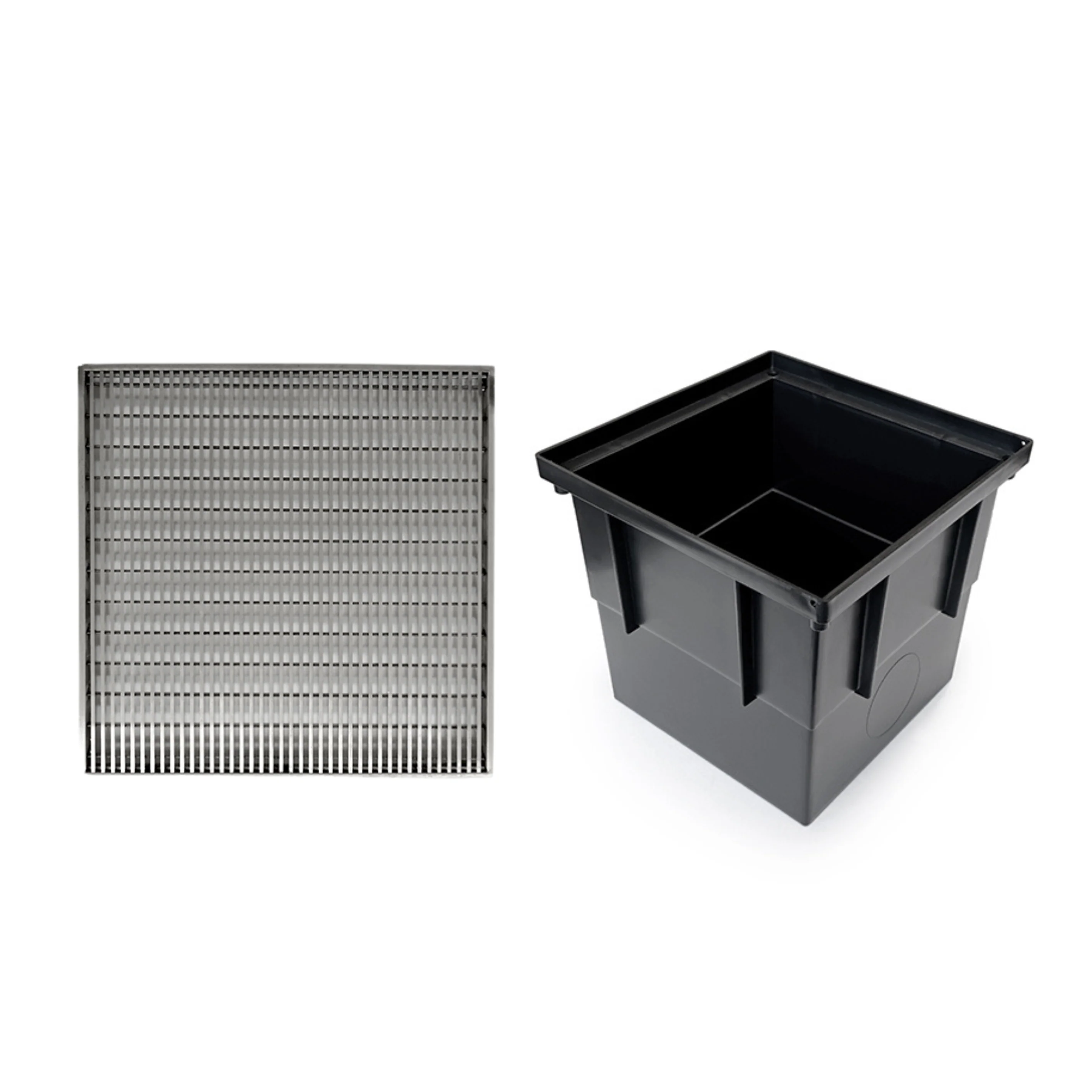

The Allproof Wedge Wire Drainage Pit is the ultimate choice for high-traffic pedestrian areas and coastal environments. Combining a sleek, industrial aesthetic with the high-performance properties of 316-grade stainless steel, this system provides a premium finish for modern architectural projects while ensuring rapid water evacuation.

Key Features:

Marine-Grade 316 Stainless Steel: Specifically selected for its superior resistance to corrosion and pitting, making it ideal for coastal regions or high-exposure outdoor areas.
Architectural Wedge Wire Design: Features a "V" shaped wire profile that maximizes water intake while preventing debris from clogging the system.
Certified Safety: Boasts an R11 slip resistance classification and a heelproof design, providing a safe, stable surface for high foot-traffic urban areas, malls, and public plazas.
Eco-Conscious Pit: The 350mm² pit is manufactured from 100% recycled plastic, aligning your project with sustainable building practices.
Fast Connectivity: Engineered with pre-marked 100mm pipe outlets and integrated rubber gaskets for a reliable, leak-free installation.

Technical Specifications:

Dimensions: 350mm x 350mm (Square)
Depth: 325mm
Grate Material: 316-Grade Stainless Steel (Electropolished finish available)
Open Area: Approximately 30% for high-volume hydraulic performance.
Slip Rating: R11 (AS 4586)
Outlet Size: 100mm (Pre-marked with seals)

Ideal Applications:

Coastal residential properties and beachfront promenades.
High-end commercial shopping precincts and pedestrian streets.
Modern public squares and urban streetscapes.
Level-entry transitions and high-traffic building entrances.

The Allproof 350mm² Wedge Wire Pit delivers a sophisticated, long-lasting drainage solution that enhances the safety and visual appeal of any premium landscape.

Drainage Pits

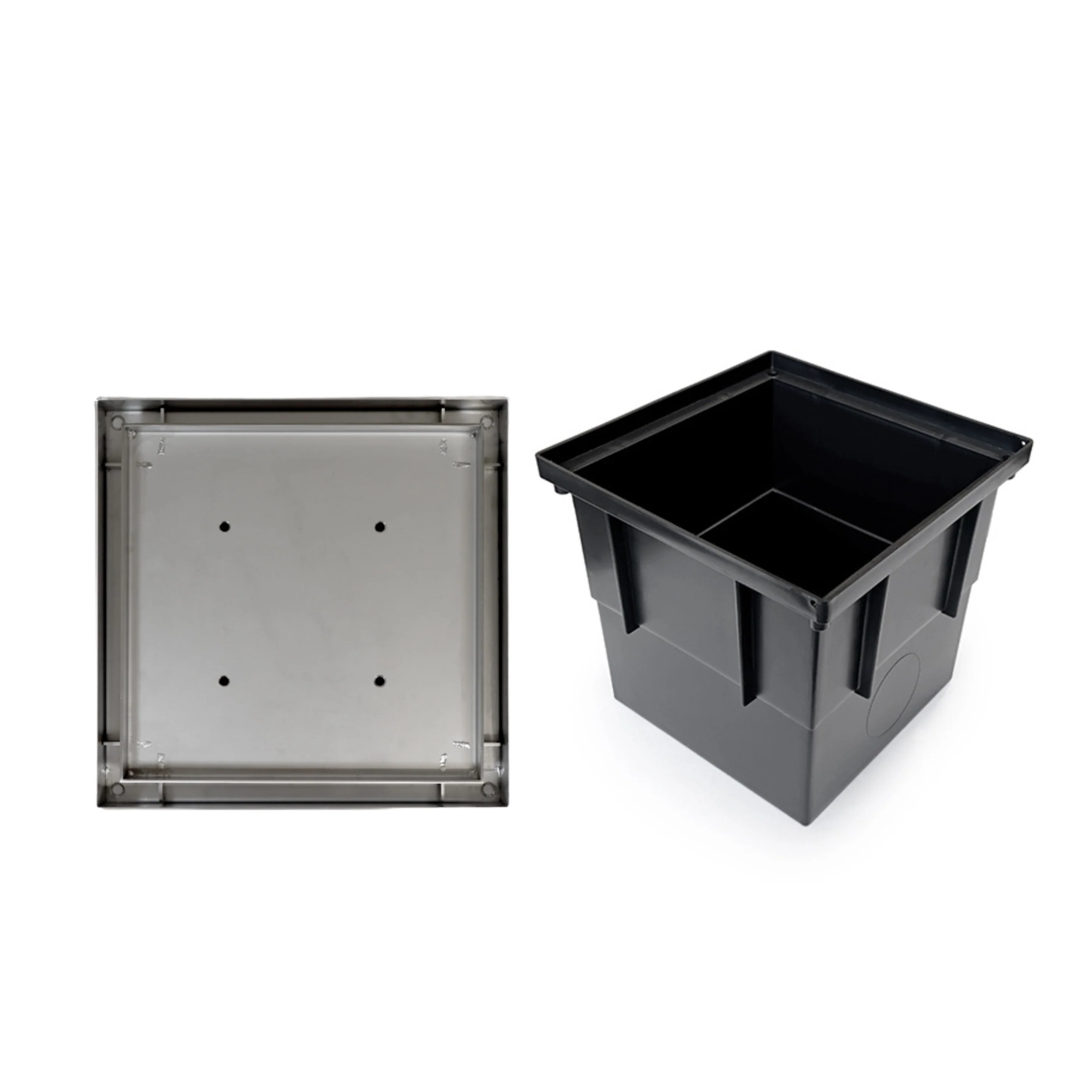

Square Drainage Pit 350 mm² × 325 mm Deep with Tile Insert Grate

Square Drainage Pit 350 mm² × 325 mm Deep with 316 Stainless Steel Wedge Wire Grate

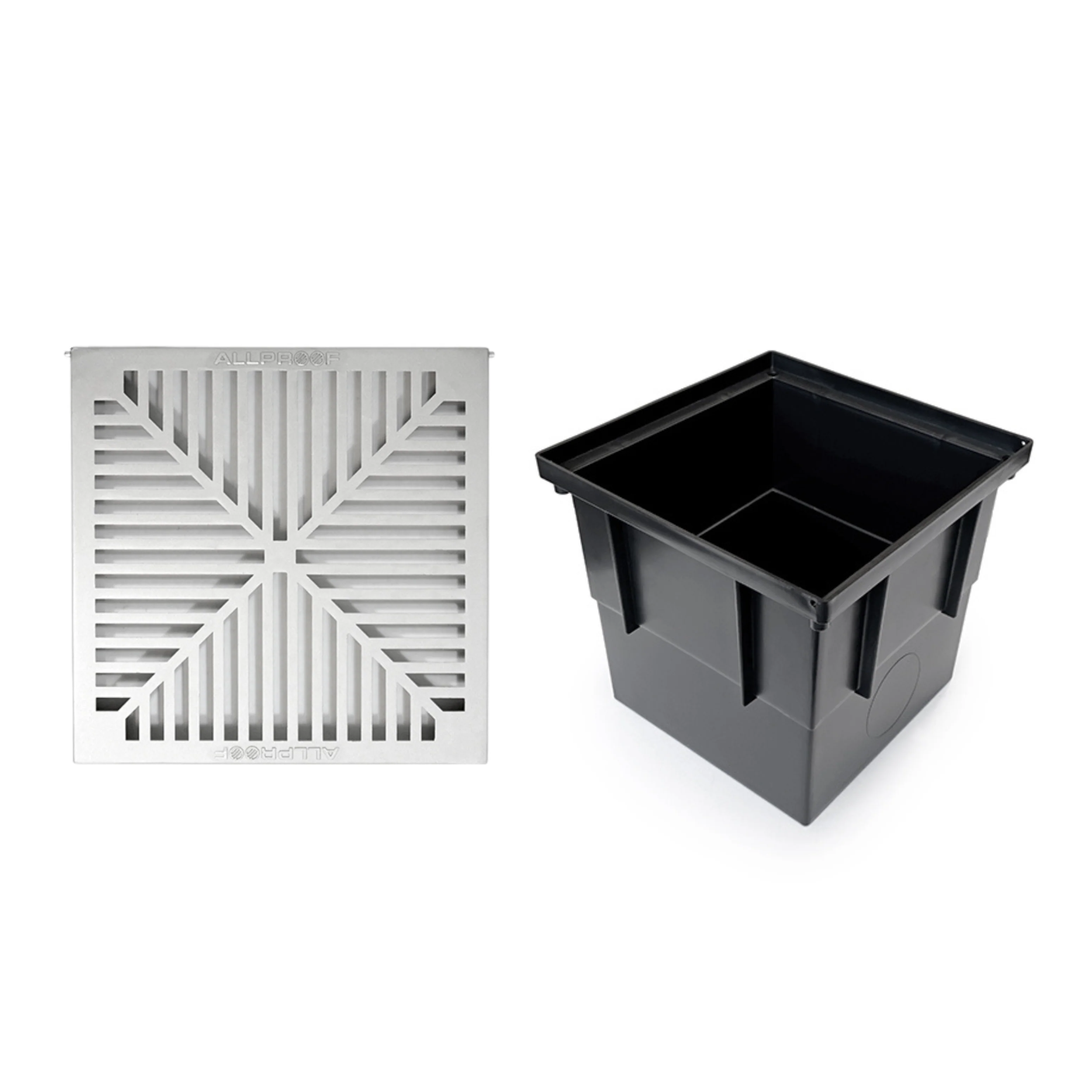

Square Drainage Pit 350 mm² × 325 mm Deep with Aluminium Grate

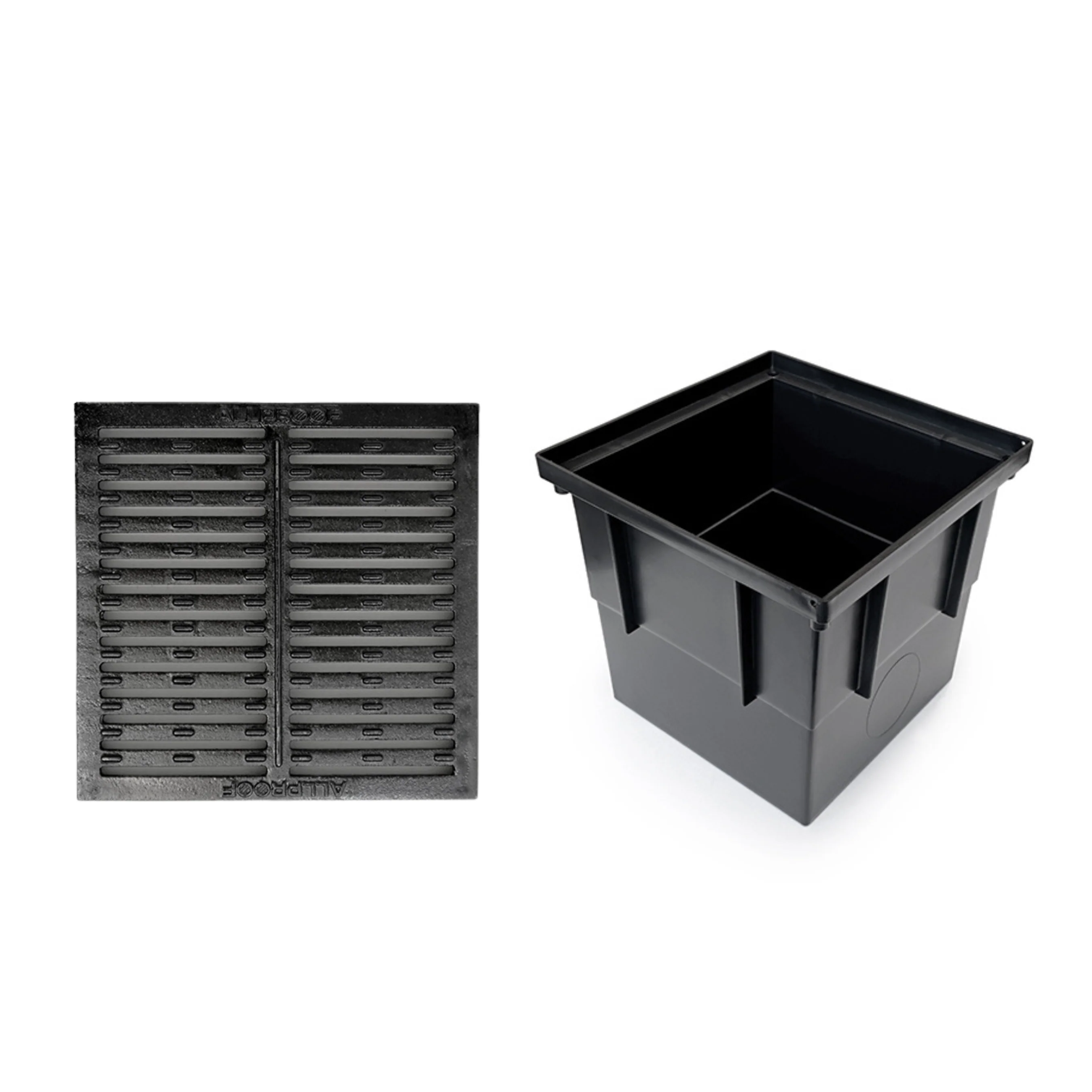

Square Drainage Pit – 350mm² × 325mm Deep with Heelproof Cast Iron Grate

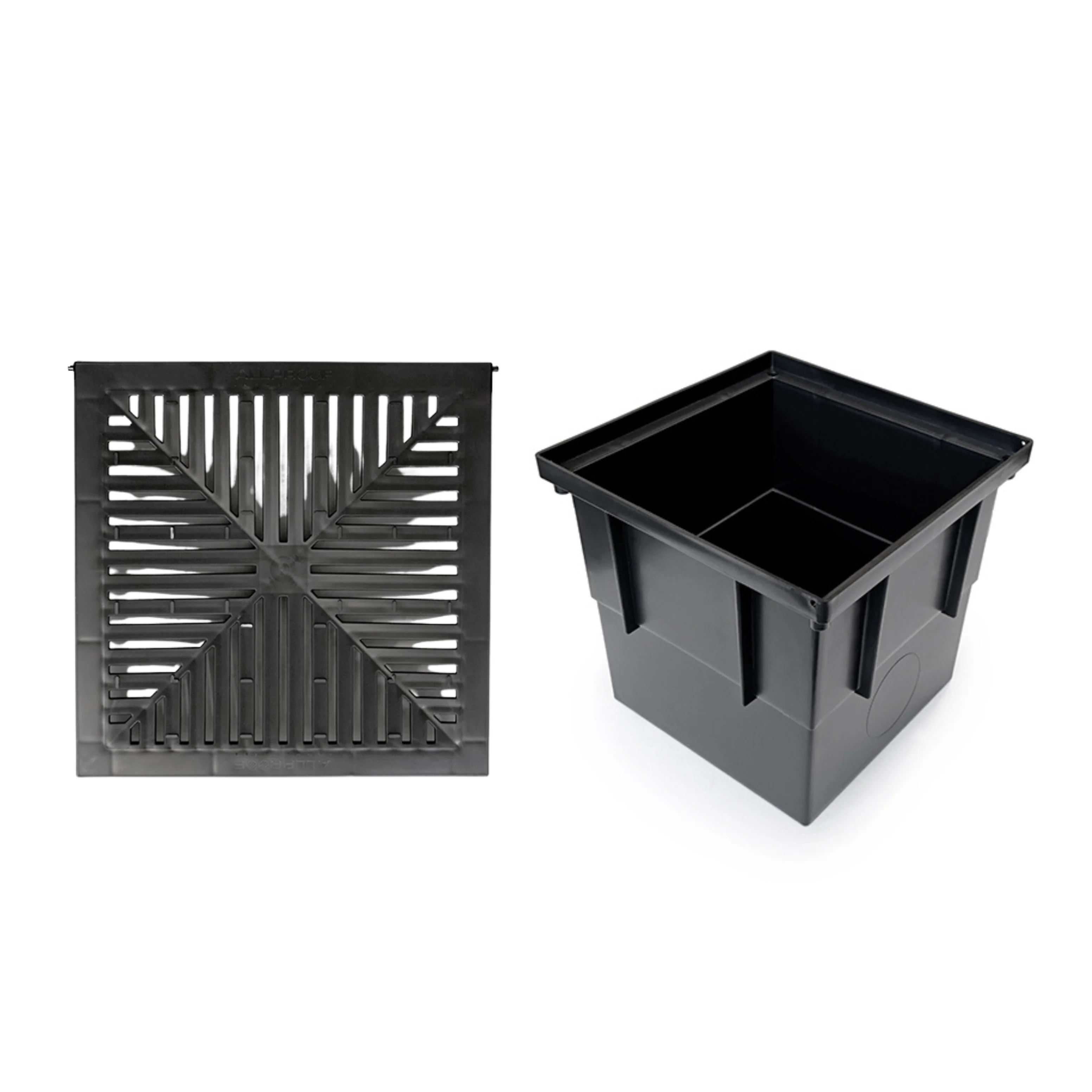

Square Drainage Pit – 350mm² × 325mm Deep with Black Plastic Grate
