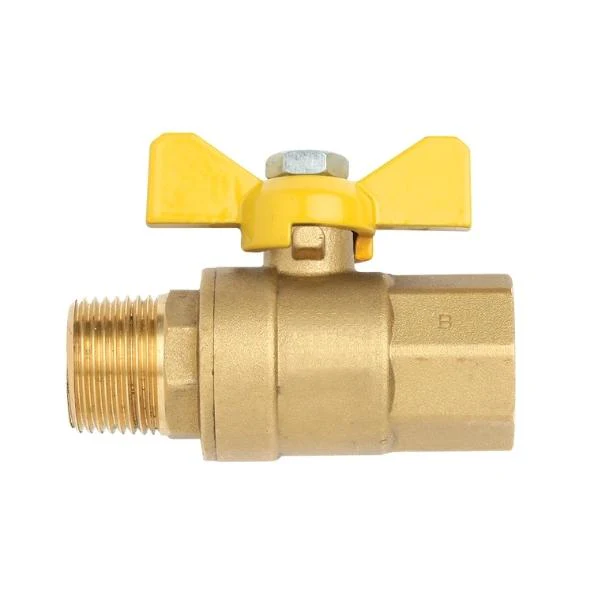

Ball Valve Gas Brass R1/2 M X Rc1/2 F T Handle
Bromic’s range of gas T-handle ball valves are manufactured with high quality brass, providing extensive durability with a maximum operating pressure of 2600kPa at nominal temperatures.
Approved by the Australian Gas Association for use with natural gas and LPG, these valves are 100% pressure tested and offer excellent flexibility, with a working temperature range between -20°C to 120°C and are commonly used in kitchen and backyard applications.
Features
High quality brass construction
Working temperature range between -20°C to 120°C
Maximum operating pressure at nominal temperatures of 2600kPa
Suitable for use with vacuum
100% pressure tested
Approved by the Australian Gas Association for use with natural gas and LPG
Used for kitchen and backyard applications
Specifications
| Product Number | 1210430 |

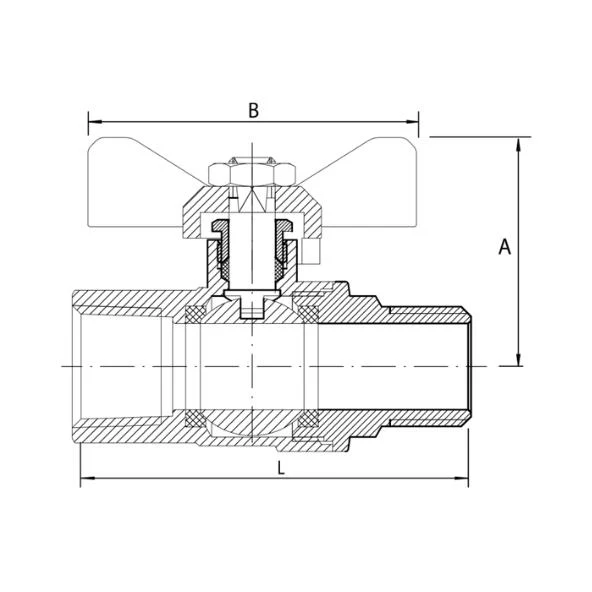

| Dimension A (mm) | 46.5 |
| Dimension B (mm) | 57 |
| Dimension C (mm) | 74.5 |
| Pressure Rating (kPa) | 2600kPa |
| AGA Approval Number | 7425 |
| Working Temperature Range | -20°C to 120°C |
| Brands | Bromic |
| Material | Brass |
| Handle Type | T-handle (Butterfly) |
| Inlet Connection (Connector) | F |
| Inlet Connection (Thread Size) | 1/2" |
| Inlet Connection (Thread Type) | R |
| Outlet Connection (Connector) | M |
| Outlet Connection (Thread Size) | 1/2" |
| Outlet Connection (Thread Type) | RC |
