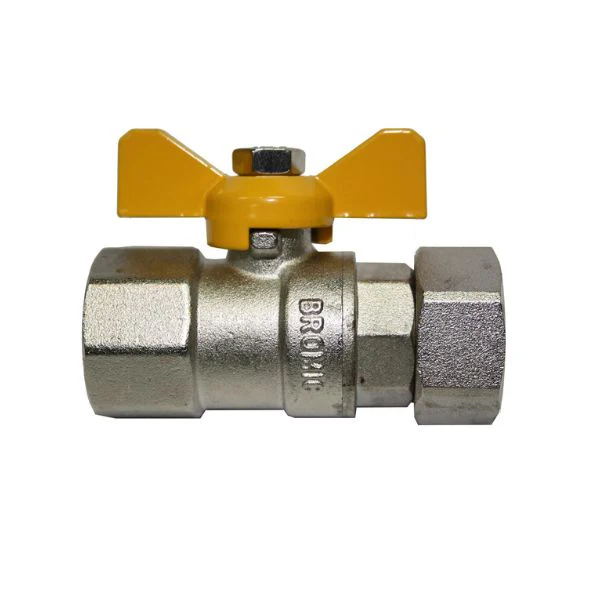

Ball Valve Gas Rp3/4 X G3/4 Nut Nickel Pl B Hand
Bromic’s range of water female x loose nut ball valves are manufactured with high quality brass providing extensive durability..
Watermark approved for use with potable water, these valves are 100% pressure tested and offer excellent flexibility with a working temperature range between -20°C to 120°C.
Features
High quality brass construction with conical P.T.F.E. stem sealing system
Working temperature range between 0°C to 60°C
Maximum operating pressure at nominal temperatures of 2600kPa
Suitable for use with vacuum
100% pressure tested
Approved by the Australian Gas Association for use with natural gas and LPG
Used for kitchen and backyard applications
Specifications
| Product Number | 1210450 |
| Dimension A (mm) | 46.5 |
| Dimension B (mm) | 57 |
| Dimension C (mm) | 72 |
| Pressure Rating (kPa) | 2600 |
| AGA Approval Number | 7423 |
| Working Temperature Range | -20°C to 120°C |
| For use with | LPG (Propane), NG, Water |
| Box Quantity | 16 |
| Thread Size | 3/4" |
| Thread Type | G, RC |
| Brands | Bromic |
| Material | Brass, Nickel Plated |
| Handle Type | T-handle (Butterfly) |
| Connector | F |
| Inlet Connection (Connector) | F |
| Inlet Connection (Thread Size) | 3/4" |
| Inlet Connection (Thread Type) | RC |
| Outlet Connection (Connector) | F |
| Outlet Connection (Thread Size) | 3/4" |
| Outlet Connection (Thread Type) | G Nut |
Original: $14.69
-70%$14.69
$4.41Product Information
