Click-Lock Pull Down Grab Rail

Material	#304 Stainless Steel
Tubing	1.2mm #304 Stainless Steel - 32mmØ
Mounting Bracket & Brace	4.5mm Formed #304 Stainless Steel
Finish	Satin Stainless Steel

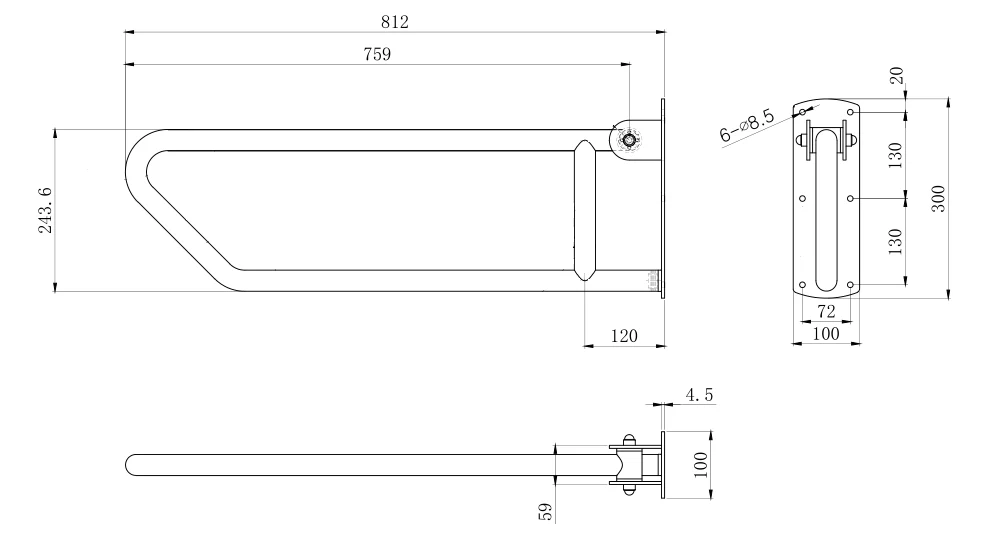

Overall Dimensions	812mmL x 300mmH
Grab Rail	243.6mmH from outer edge to edge
Mounting Bracket	100mmW x 300mmH x 30~50mmD x 4.5mmT
Mounting Holes	6 off by 8.5mmØ
Features	Click-lock system to prevent rail sliding down Unit is Seamless Welded & Polished
Note	Unit stores in upright position It is the responsibility of the installer to ensure that the surface/substrate that the unit is installed upon and the fixings used are suitable to withstand the weight bearing loads of the unit and if required as per AS1428 / Australian building code regulations. *The materials and construction of this grab rail meets AS1428.1 force requirements to be able to withstand a force of 1100Nm applied at any position and in any direction without deformation.

$70.30

Original: $234.34

Click-Lock Pull Down Grab Rail—

$234.34

$70.30

Original: $234.34

Click-Lock Pull Down Grab Rail—

$234.34

$70.30

Material	#304 Stainless Steel
Tubing	1.2mm #304 Stainless Steel - 32mmØ
Mounting Bracket & Brace	4.5mm Formed #304 Stainless Steel
Finish	Satin Stainless Steel
Overall Dimensions	812mmL x 300mmH
Grab Rail	243.6mmH from outer edge to edge
Mounting Bracket	100mmW x 300mmH x 30~50mmD x 4.5mmT
Mounting Holes	6 off by 8.5mmØ
Features	Click-lock system to prevent rail sliding down Unit is Seamless Welded & Polished
Note	Unit stores in upright position It is the responsibility of the installer to ensure that the surface/substrate that the unit is installed upon and the fixings used are suitable to withstand the weight bearing loads of the unit and if required as per AS1428 / Australian building code regulations. *The materials and construction of this grab rail meets AS1428.1 force requirements to be able to withstand a force of 1100Nm applied at any position and in any direction without deformation.
