MC Series – Modular Channel System

Stainless Modular Strip Drain System

The MC Series is a modular channel drain with sump available in standard sizes creating a system that’s easy to assemble to the needs of specific projects.

With a range of channels available providing various options for width, length and depth this system provides excellent flexibility creating layouts for large complex projects.

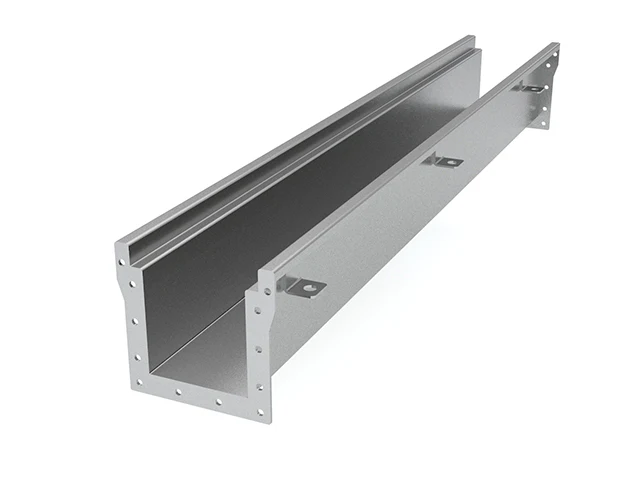

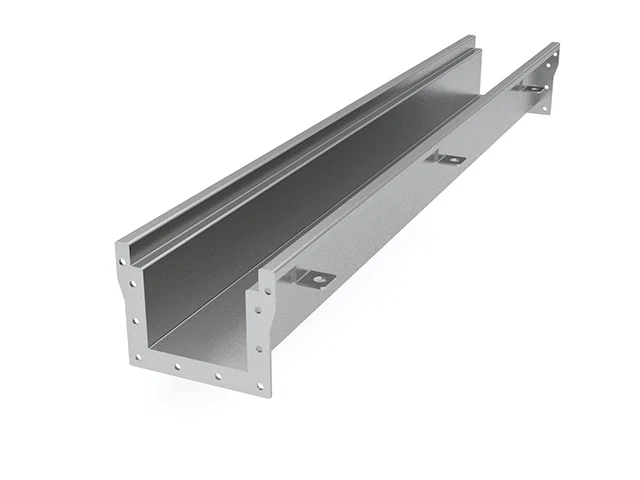

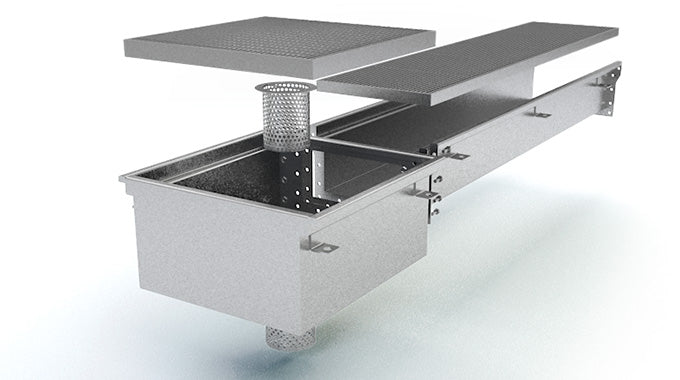

The channels come in 1m or 2m lengths allowing for transport and easy handling on site during install. Sumps available as an end terminal or as a continuous junction for channels. The use of joiners allow depths to increase towards the sumps for greater hydraulic performance.

By selecting the 2m length channels the system accommodates runs of up to 6 meters terminating at a sump. A mirror image can then be run in the opposite direction, resulting in 10 meters between sumps. Overall system length is unlimited when using the straight through sump junction.

By selecting a system constructed from standardised components it becomes easy to specify, order and install.
