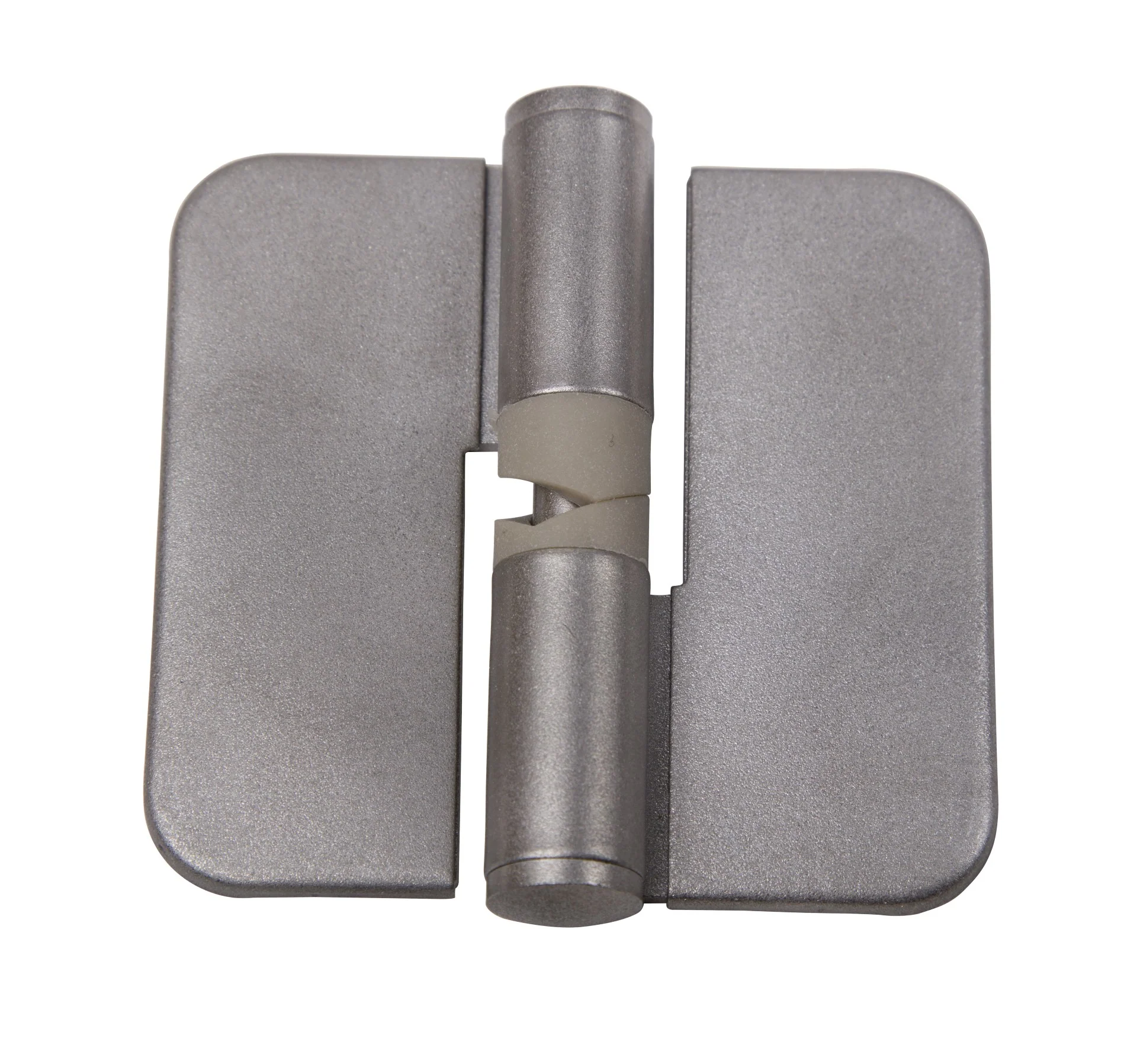

Sentinel Gravity Hinge Concealed Fix
Specification
| Material | #304 Stainless Steel Nylon Inserts Stainless Steel Snap-on Covers |
| Finish | Authentic Industrial Stainless Steel |
| Mounting | Screw Fix |

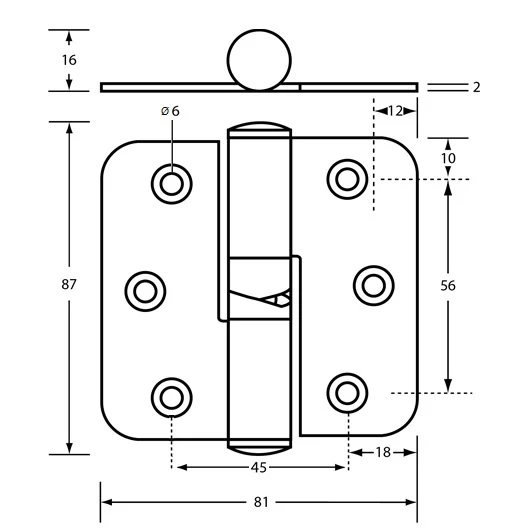

| Minimum Hinge Clearance For Lift Off Hinges | 35mm |
| Specify |
SENTINEL_LHHC_SS: Left Hand, Hold Closed. Assists door to move towards Hold Closed position |
| Features | Gravity assisted door opening/door closing with lift off capability. |
| Load Rating |
15Kg per hinge Note: 3 Hinges per door is recommended to prevent door bowing |
| For optimum performance - 2 hinges per door up to 30Kgs For doors over 30Kg allow for 15Kg per hinge |
|
| Note | All hinges are available with or without fixings. Please nominate your requirements at the time of ordering. |
| Disclaimer | Gravity hinges contain no mechanical components. The functionality of these hinges can vary depending on the environment. When selecting this product, please view our Product Disclosure Statement in the Care and Maintenance Download below. |
Original: $29.99
-70%$29.99
$9.00Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Specification
| Material | #304 Stainless Steel Nylon Inserts Stainless Steel Snap-on Covers |
| Finish | Authentic Industrial Stainless Steel |
| Mounting | Screw Fix |
| Minimum Hinge Clearance For Lift Off Hinges | 35mm |
| Specify |
SENTINEL_LHHC_SS: Left Hand, Hold Closed. Assists door to move towards Hold Closed position |
| Features | Gravity assisted door opening/door closing with lift off capability. |
| Load Rating |
15Kg per hinge Note: 3 Hinges per door is recommended to prevent door bowing |
| For optimum performance - 2 hinges per door up to 30Kgs For doors over 30Kg allow for 15Kg per hinge |
|
| Note | All hinges are available with or without fixings. Please nominate your requirements at the time of ordering. |
| Disclaimer | Gravity hinges contain no mechanical components. The functionality of these hinges can vary depending on the environment. When selecting this product, please view our Product Disclosure Statement in the Care and Maintenance Download below. |
