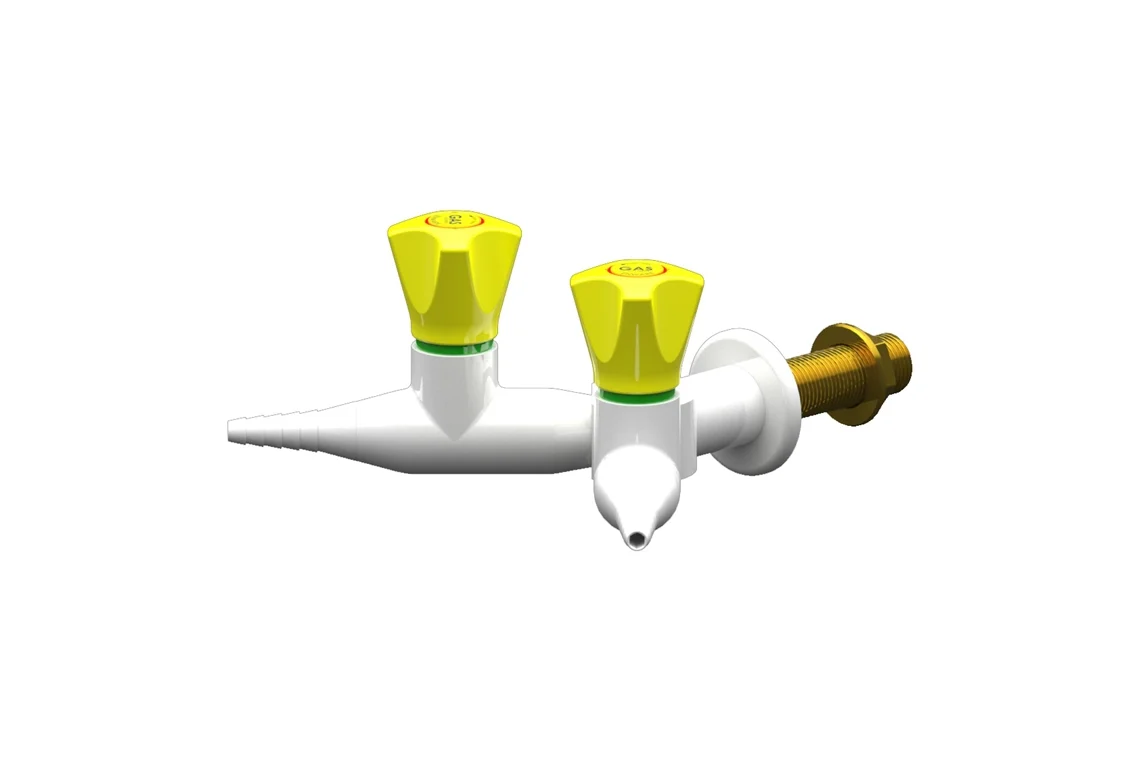

Slimline Two Way Straight 90 Degree Wall Mounted Laboratory Tap
Enwareâs ComLab Dry Media outlets are supplied with a tapered tube nozzle and are assembled for each specific media type. Activation methods include a needle valve, for accurate adjustment or a push-to-turn valve with visual on/off indication. ComLab handles are ergonomically designed for precise feel and fingertip control. Handles are colour coded for easy service identification and use complimentary buttons.
- Suited for burning gasses up to technical gas level 2.0 and AGA approved
- The durable powder coat finish gives significant protection against corrosion, discolouration and surface damage
- Push-to-Turn valve with visual on/off indication; metal handle colour coded with button for media identification to DIN EN 13792
- 1/2" BSP male inlet tail with 3/8" BSP female internal thread; includes Backnut, anti-rotation pin and o-ring for surface seal
- Isolation valve optional for easier service and maintenance
- Tube nozzle; 45 degree Tube nozzle is available on request
GAS
| Burning Gas Options | Acetylene, Ethylene, Methane, Natural Gas, LPG, Propylene NOTE:Specify media type when ordering |
INLET & OUTLET
| Connection | 1/2" BSP Male | 3/8" BSP Female** |
| Outlet Connection | Tube Nozzle | 3.8" BSP Female (without nozzle | Other options available) |
PRESSURE
| Maximum Working Pressure â Needle Valve | 7kPa (Burning GA |
| Maximum Working Pressure â Push-to-Turn Valve | 7kPa (Burning GA |
Original: $704.68
-70%$704.68
$211.40Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Enwareâs ComLab Dry Media outlets are supplied with a tapered tube nozzle and are assembled for each specific media type. Activation methods include a needle valve, for accurate adjustment or a push-to-turn valve with visual on/off indication. ComLab handles are ergonomically designed for precise feel and fingertip control. Handles are colour coded for easy service identification and use complimentary buttons.
- Suited for burning gasses up to technical gas level 2.0 and AGA approved
- The durable powder coat finish gives significant protection against corrosion, discolouration and surface damage
- Push-to-Turn valve with visual on/off indication; metal handle colour coded with button for media identification to DIN EN 13792
- 1/2" BSP male inlet tail with 3/8" BSP female internal thread; includes Backnut, anti-rotation pin and o-ring for surface seal
- Isolation valve optional for easier service and maintenance
- Tube nozzle; 45 degree Tube nozzle is available on request
GAS
| Burning Gas Options | Acetylene, Ethylene, Methane, Natural Gas, LPG, Propylene NOTE:Specify media type when ordering |
INLET & OUTLET
| Connection | 1/2" BSP Male | 3/8" BSP Female** |
| Outlet Connection | Tube Nozzle | 3.8" BSP Female (without nozzle | Other options available) |
PRESSURE
| Maximum Working Pressure â Needle Valve | 7kPa (Burning GA |
| Maximum Working Pressure â Push-to-Turn Valve | 7kPa (Burning GA |
