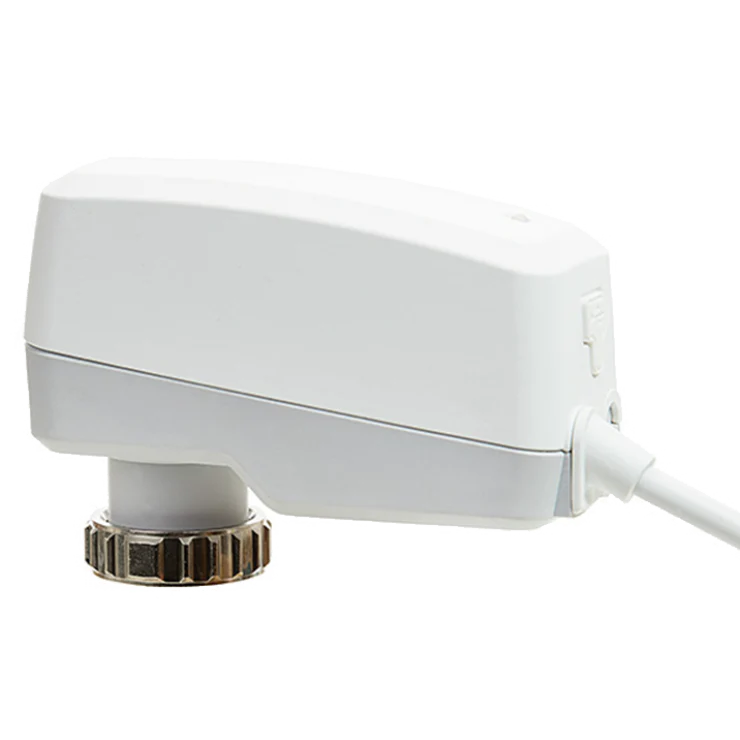

TA Slider 160 Actuator 24v

Digitally configurable proportional push actuator – 160/200 N. 1m Cable

Functions:

• Proportional control
• Manual override (TA-Dongle)
• Stroke detection
• Self-adjusting force
• Mode, status and position indication
• Stroke limitation setting
• Minimum stroke setting
• Valve blockage protection
• Valve clogging detection
• Error safe position
• Diagnostic/Logging

Delayed start-up

I/O version:
+ 1 binary input, max. 100 Ω, cable max. 10 m or shielded.
+ Output signal

Plus version:
+ 1 binary input, max. 100 Ω, cable max. 10 m or shielded.
+ 1 relay, max. 5A, 30 VDC/250 VAC on resistive load
+ Output signal

CO (change-over) version:
+ 1 binary input, max. 100 Ω, cable max. 10 m or shielded.
+ 1 relay, internally wired for control of TA-M106 actuator on TA-6-way valve (max. 2A, 30 VAC on resistive load).
+ Output signal
