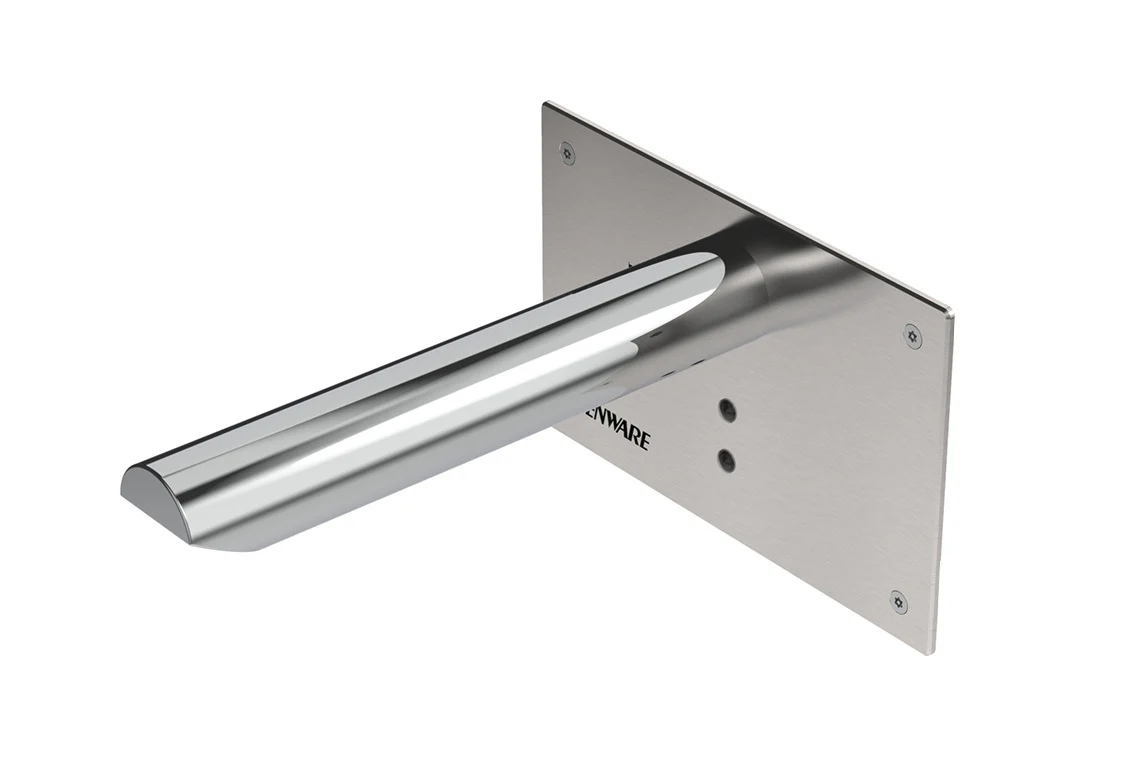

Wall Mounted Sensor Tap – Hands-Free – Active Sense with 250mm Spout
The Touch Free Wall Mounted Sensor is a wall-mounted, sensor operated, hands free tap that is installed above sinks and basins.
It operates by sensing a hand in front of the sensor unit.
It uses a beam of invisible Infrared light which, when reflected from hand back to the sensor, operates the unit.
- To turn tap on, place hand under spout in front of sensor
- To turn tap off, move hand away
- Valve stays open for 6 seconds, or as long as the hand is within sensor range
- Maximum flow time of 45 seconds* per activation reduces waste and prevents vandalism
- Equipped with automatic hygiene flush function (1-10min/24hr) - enabled on request
- Stainless steel sensor plate
INLET & OUTLET
| Inlet Connection | 15mm (1/2") BSP |
PRESSURE
| Recommended Working Pressure | 100-500 kPa* |
FLOW RATE
| Flow Rate | 4 star WELS rating (8 lpm laminar fl ow) supplied standard. 6 Star WELS rating (5 lpm aerated / laminar flow) available on request. |
TEMPERATURE
| Maximum Temperature | 70°CC |
POWER SOURCE
| Operating Voltage | 24V DC |
| Maximum Current | 1A |
| Power Consumption | Less than 10W |
IP RATING
| Sensor Protection Rating | IP67 for the front panel and sensor lens. No IP rating behind panel. |
SENSOR
| Sensor Range | 100-235mm |
TIME FLOW
| Flow Time | Runs as long as hand is within range. (Active Sense) When out of range, runs for 6 seconds. (Afterfl ow) Maximum continuous fl ow period per sensor activation is 45 seconds. (Security Time Out) |
$364.58
Original: $1,215.28
-70%Wall Mounted Sensor Tap – Hands-Free – Active Sense with 250mm Spout—
$1,215.28
$364.58Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
The Touch Free Wall Mounted Sensor is a wall-mounted, sensor operated, hands free tap that is installed above sinks and basins.
It operates by sensing a hand in front of the sensor unit.
It uses a beam of invisible Infrared light which, when reflected from hand back to the sensor, operates the unit.
- To turn tap on, place hand under spout in front of sensor
- To turn tap off, move hand away
- Valve stays open for 6 seconds, or as long as the hand is within sensor range
- Maximum flow time of 45 seconds* per activation reduces waste and prevents vandalism
- Equipped with automatic hygiene flush function (1-10min/24hr) - enabled on request
- Stainless steel sensor plate
INLET & OUTLET
| Inlet Connection | 15mm (1/2") BSP |
PRESSURE
| Recommended Working Pressure | 100-500 kPa* |
FLOW RATE
| Flow Rate | 4 star WELS rating (8 lpm laminar fl ow) supplied standard. 6 Star WELS rating (5 lpm aerated / laminar flow) available on request. |
TEMPERATURE
| Maximum Temperature | 70°CC |
POWER SOURCE
| Operating Voltage | 24V DC |
| Maximum Current | 1A |
| Power Consumption | Less than 10W |
IP RATING
| Sensor Protection Rating | IP67 for the front panel and sensor lens. No IP rating behind panel. |
SENSOR
| Sensor Range | 100-235mm |
TIME FLOW
| Flow Time | Runs as long as hand is within range. (Active Sense) When out of range, runs for 6 seconds. (Afterfl ow) Maximum continuous fl ow period per sensor activation is 45 seconds. (Security Time Out) |
